Which power connector is used for the ES-346 & 842?

FAQs

This FAQ explains which power connector is used in the following devices:

  • ES-346
  • ES-842

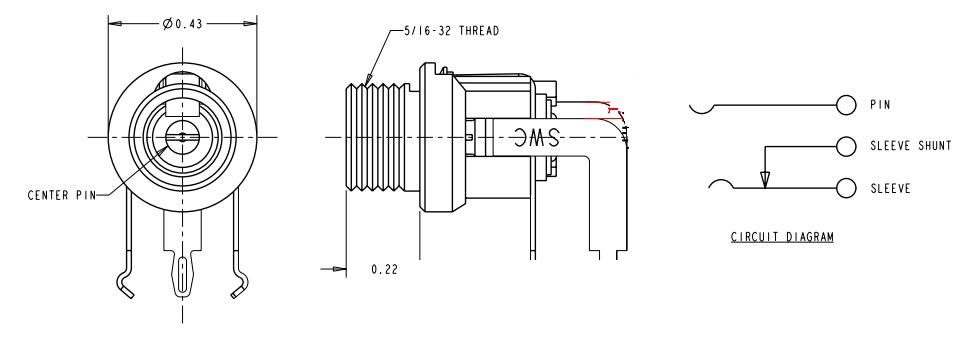

The power jack is a Right Angle PC Mount.
The socket has a:

  • 0.080 Inches diameter pin
  • 0.319 Inches long bushing

The power supply for this socket can be bought from Brainboxes part number PW-500:

files/pages/support/faqs/Images/power-connector-for-es-346-842.jpg
