compact industrial embedded Ethernet switch

(4)

Featured image for “PE-405”

PE-405

Pure Embedded Industrial 10/100 Ethernet Evaluation Kit
Featured image for “PE-415”

PE-415

Pure Embedded Industrial Gigabit Ethernet Evaluation Kit
Featured image for “PE-505”

PE-505

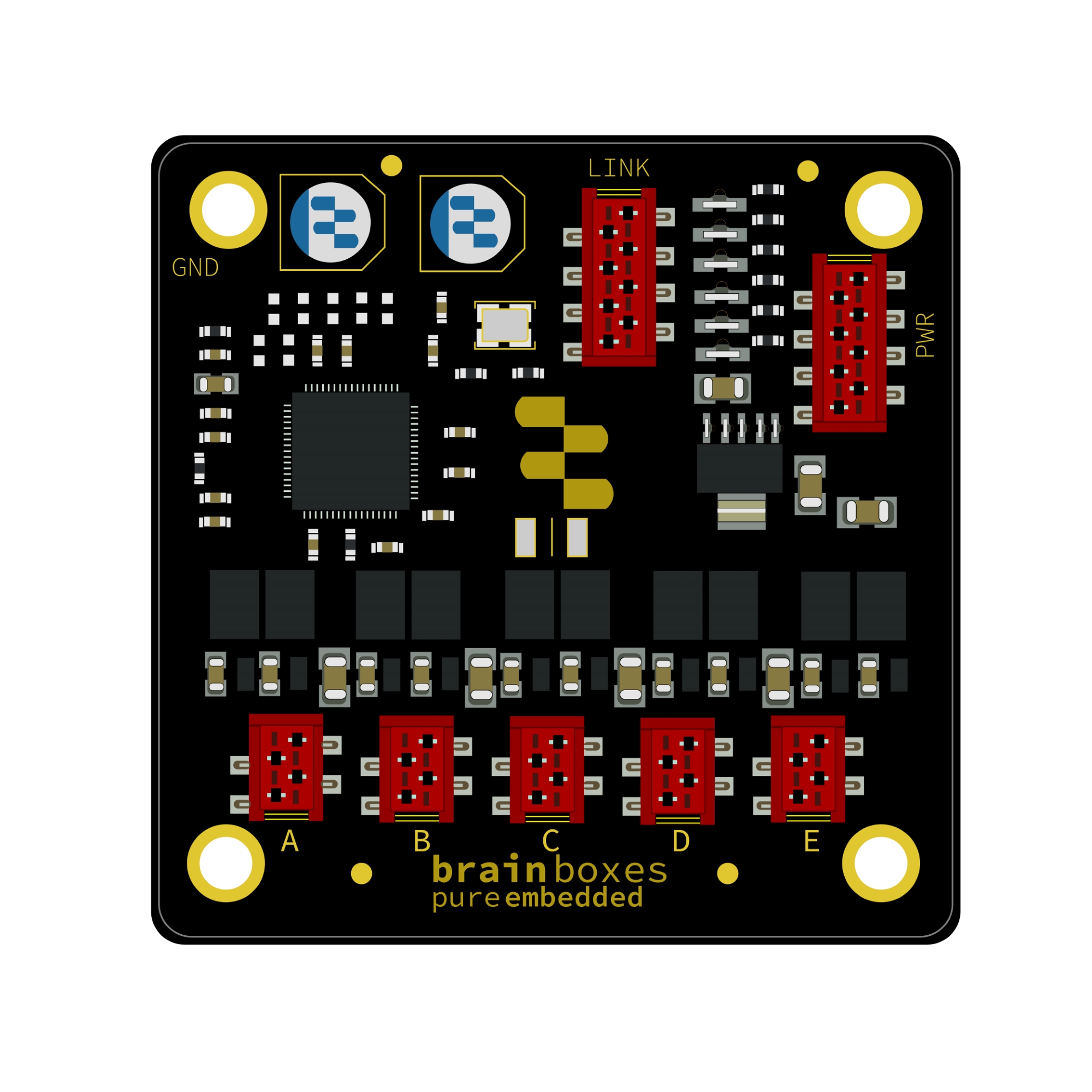

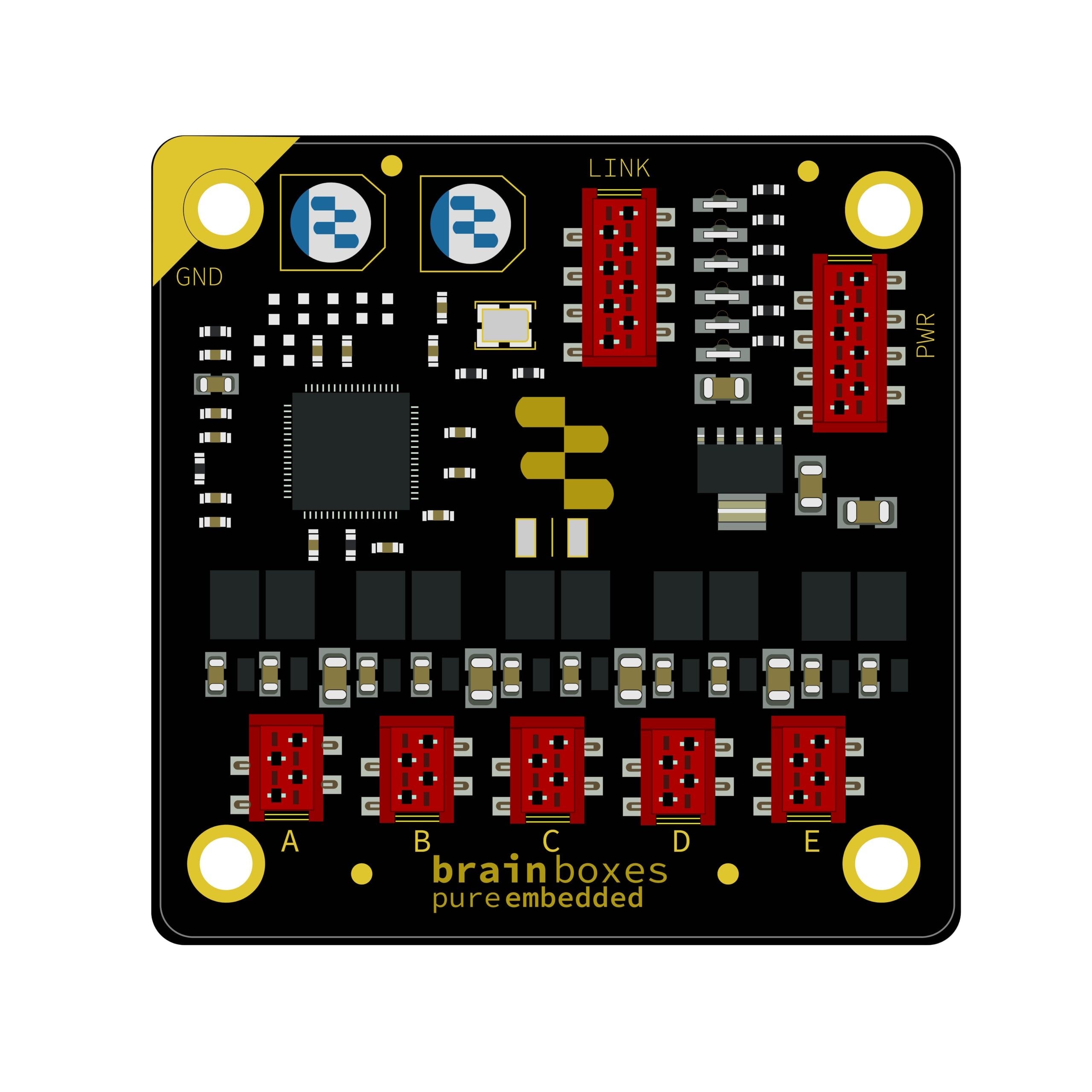

Pure Embedded Industrial 5 Port 10/100 Ethernet Switch
Featured image for “PE-515”

PE-515

Pure Embedded Industrial 5 Port Gigabit Ethernet Switch
Evaluation Kit
Ethernet Switch

10/100 Ethernet

5 Port

PE-405
PE-505

Gigabit Ethernet

5 Port

PE-415
PE-515

Pure Embedded

Pure Compatibility, Pure Stability, Pure Design

Find your perfect fit with Pure Embedded: the next generation of embedded Ethernet

Download Datasheet

Pure Embedded Ethernet Switch


Available in 10/100 and Gigabit Ethernet variants

  • Mega compact form - smaller than a standard business card (55x55x10mm / 2.17x 2.17x0.39in)
  • 3D CAD files and PCB footprints
  • Seamless integration with design software - logical placements and fixed distances
  • Board-to-board and board-to-cable connection
  • Stability of design guaranteed for min. 10 years
  • LEDs visible in all orientations – option to route through fibre optics, light pipe or electrical signal

Embedded Assurance

Brainboxes Long-Term Stable Supply Promise

Learn More

Our Embedded products are integral to your system; the last thing you need is a product that changes unexpectedly. That's why we promise availability, stability and reliability for a minimum of 10 years from product launch.

Pure Embedded Evaluation Kit


Available in 10/100 Evaluation and Gigabit Ethernet Evaluation kits

  • Quick Start Guide
  • Embedded Ethernet module included (10/100: PE-505 / Gigabit: PE-515)
  • Quick and easy access to all embedded module's functionality
  • Simplifies integration into test systems
  • Test and debug prototypes before committing to design
  • Monitor power consumption, self-test button, link header, LEDs
  • Instant start-up - USB power option

Brainboxes PE devices should be installed in industrial enclosures suitable for operating temperatures from -40°C to +85°C (-40°F to +185°F)

Devices operate above ambient temperature during prolonged use
