UP-869

Powered 2 Port RS232 PCI Serial Card - 0.5 AMP

Discontinued

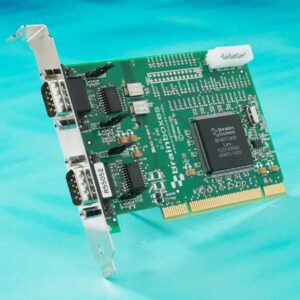

2 Port RS232 PCI Serial Card
Ground or 12V can be selected on pin 1 of each port
12V or 5V can be selected on pin 9 of each port
Maximum power output is 0.5 Amps
Drivers for all popular operating systems
Lifetime Warranty and Support

Universal PCI providing two Powered RS232 serial ports. Data transfer rates up to 115,200 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance for your electronic point of sale (ePOS) device. The power supplied on the RS232 port is selectable. Ground or 12V can be selected on pin 1 of each port and also 12V or 5V can be selected on pin 9 of each port. Powered Universal PCI cards are ideal for connecting and powering peripherals such as bar code readers, printers, card readers, display units and other Point Of Sale devices. Maximum power output is 0.5 Amps.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8.

Serial Port
Serial Port	Ports	2
	Protocol	RS232
	Connector	DB9 Connector - 9 Pin Male
	UART	Brainboxes 16C958
	UART Compatibility	16750/16550/16450 backwards compatible as well as an enhanced 950 mode
	Tx FIFO Size	128
	Rx FIFO Size	128
	Operating Distance	EIA - RS232 Standard
	Cable	No Cable; Integrated Connector
Serial Port Settings
Serial Port Settings	Max Baud Rate	115,200
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1, 1.5 or 2
	Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
	Tx/Rx Modes	Point to Point
General
General	PCB Layers	4
	Form Factor	Standard Height
	Includes Printer Port	No
	Galvanic Isolation	No
	Power Consumption	190mA @ 5V
	Product Weight	0.085 kg
	Product Dimensions	134(l) x 120(w) x 18(h) mm
	Packaged Weight	0.17 kg
	Packaged Dimensions	160(l) x 135(w) x 49(h) mm
	GTIN (barcode)	837324000573
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Windows Server 2012 Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000 Microsoft Windows 98 Microsoft Windows NT 4.0 Microsoft Windows 95 DOS
