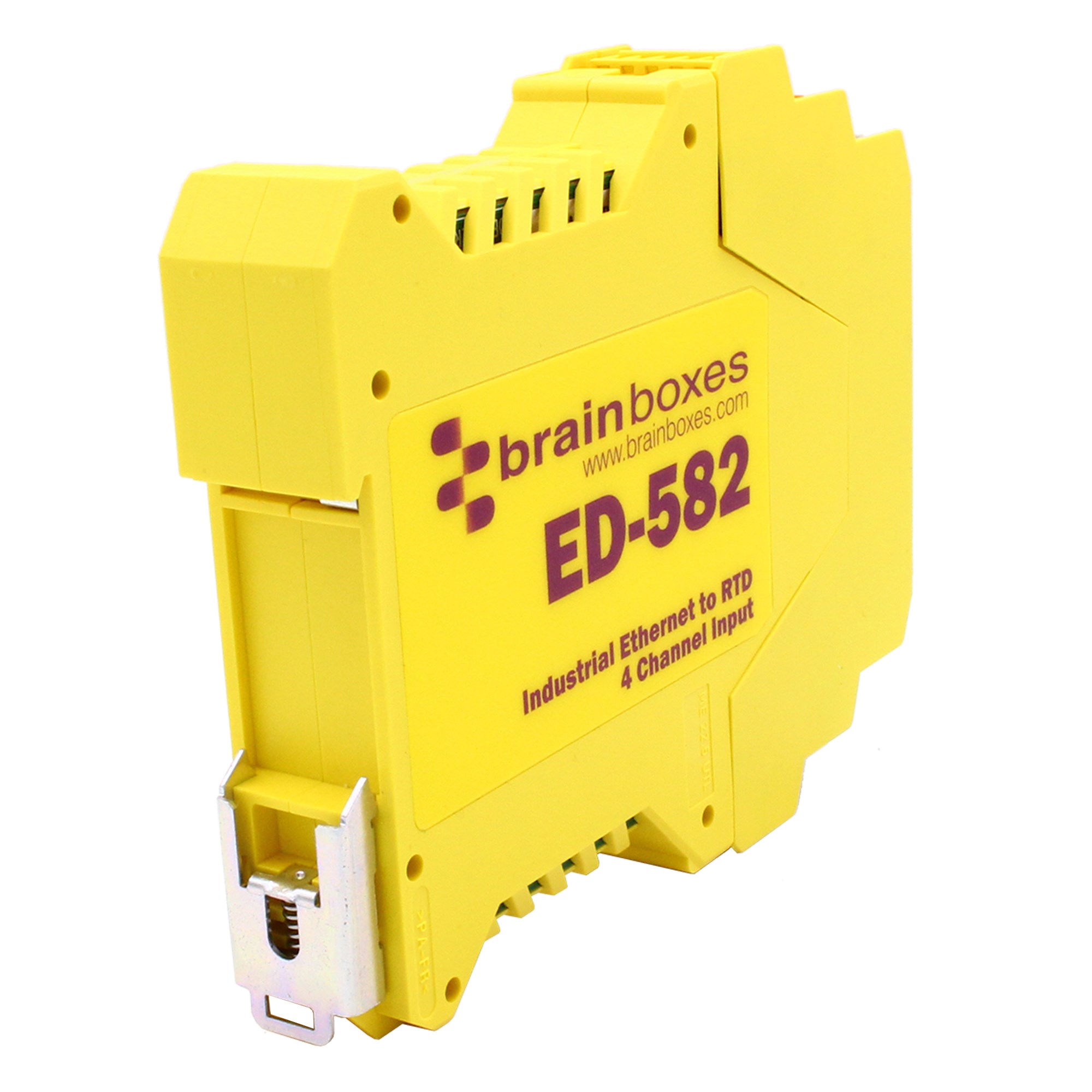

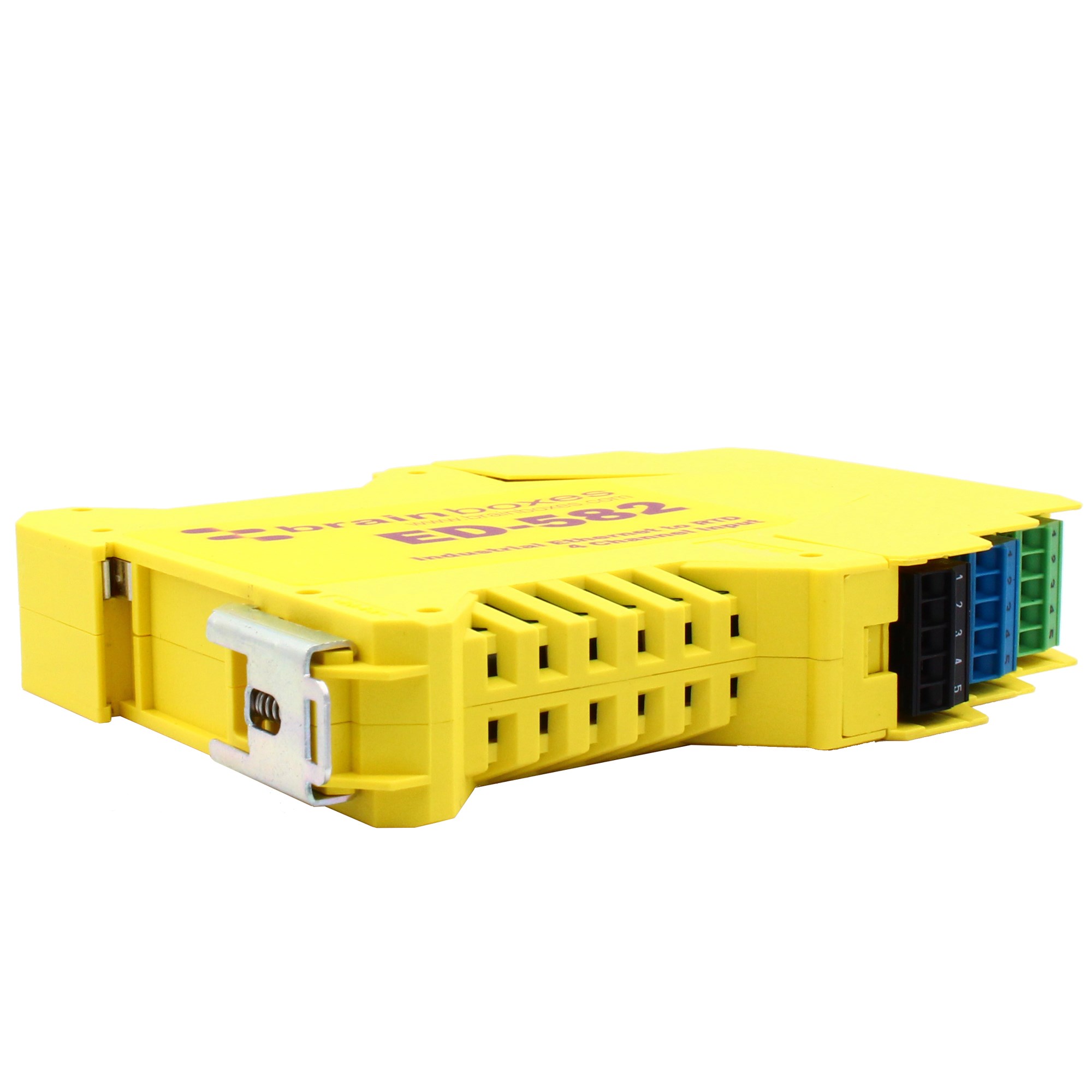

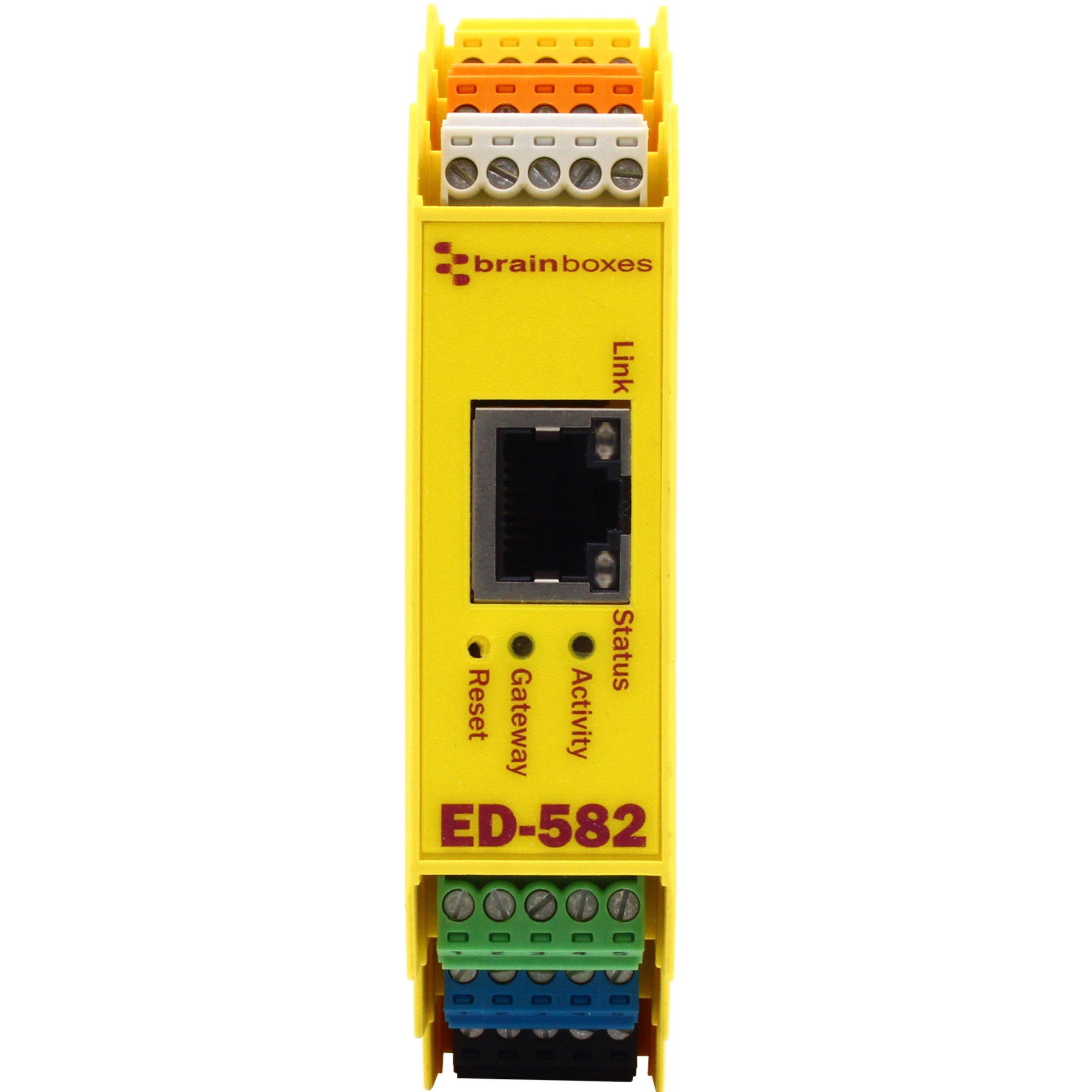

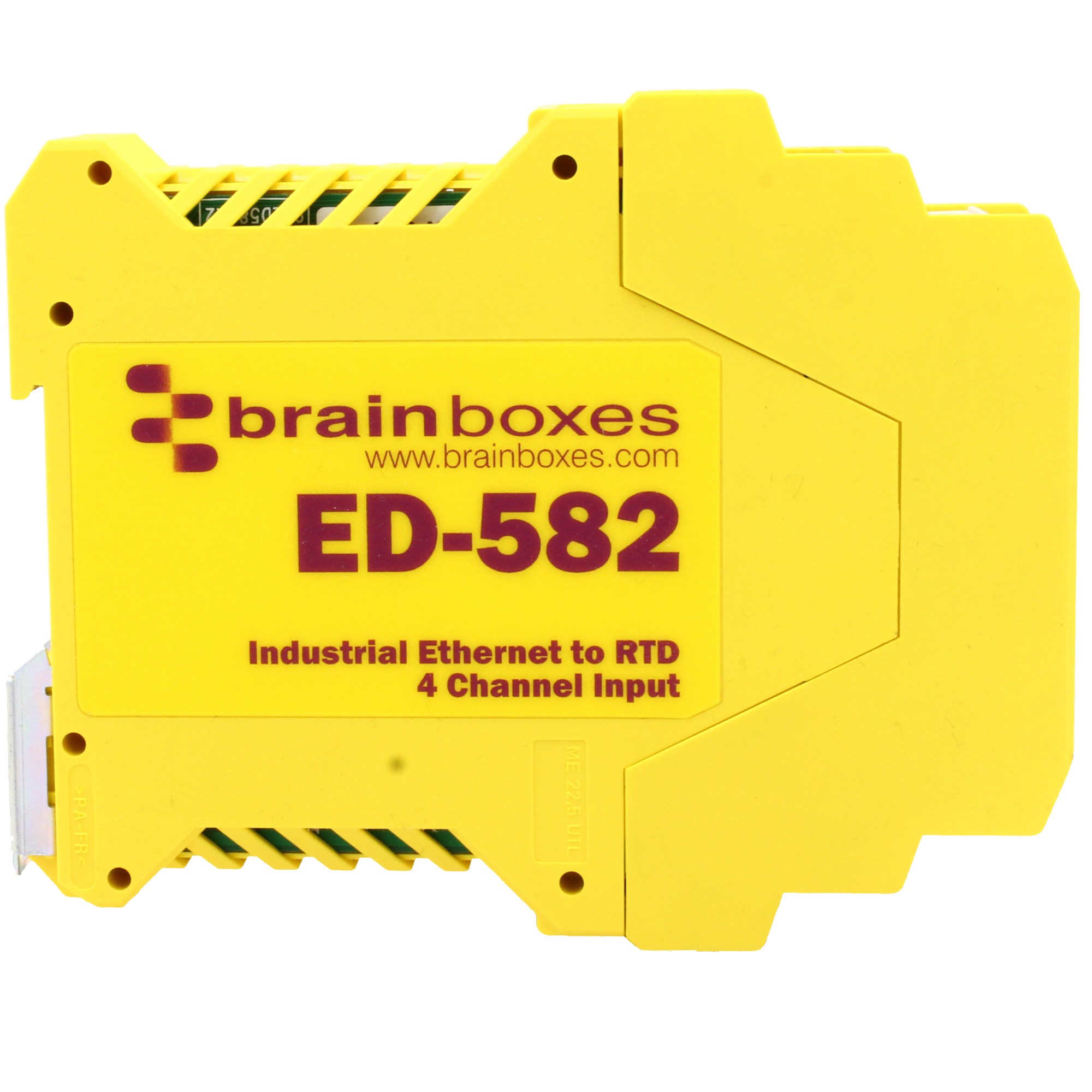

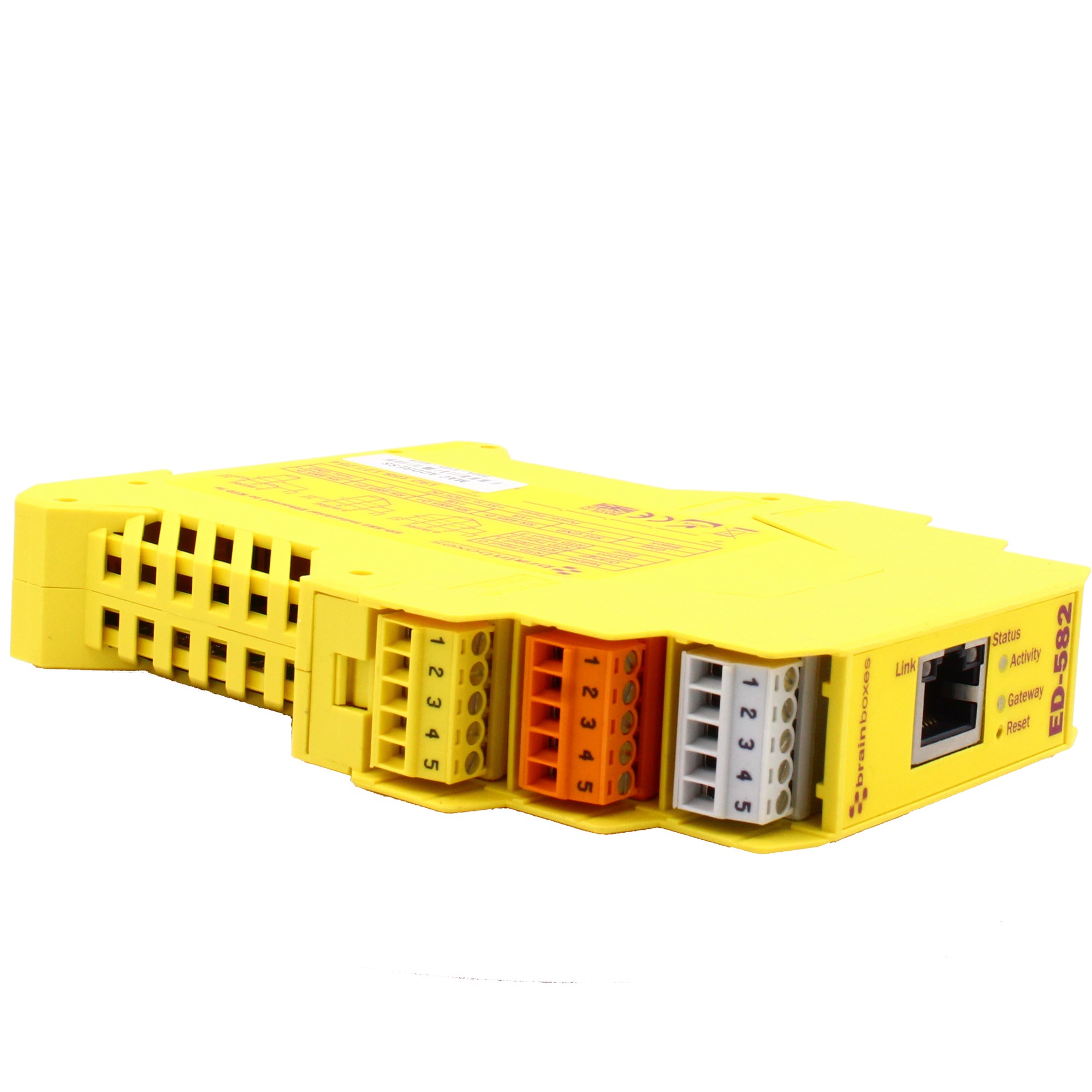

ED-582

Ethernet to 4 Channel RTD Input

  • 4 high precision RTD Inputs
  • Compatible with PT100, PT1000 and Ni120

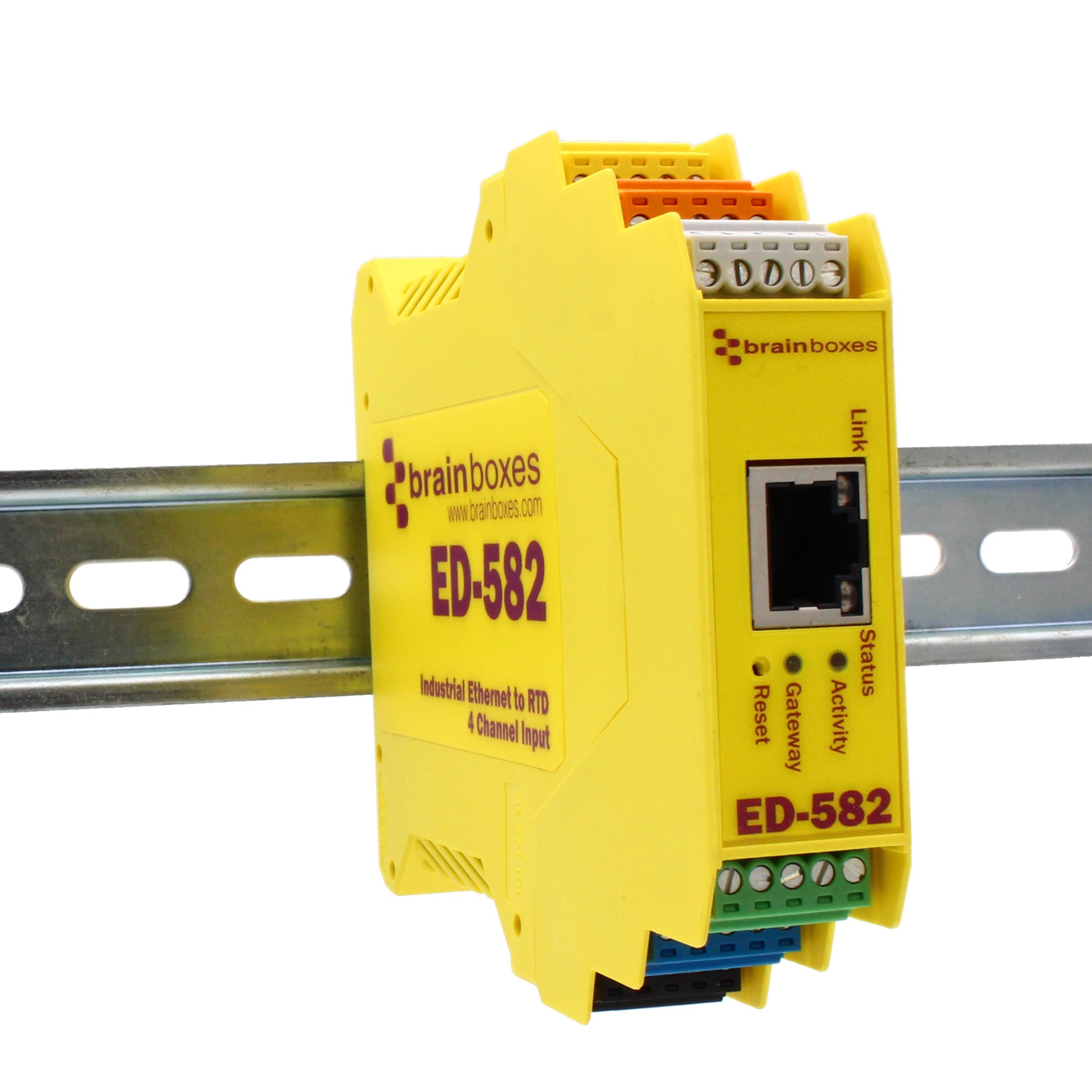

  • Factory floor process control and automation, integrated DIN rail mount
  • Supports simple ASCII TCP Protocol
  • Measurement range -200°C to +600°C
  • Software APIs for Visual Basic, C# and more

PDF Datasheet Download

$408.38
Add to Cart
Buy from Reseller
aeo-new
cage
emc-ce
made-in-gb
metl-62368
microsoft-certified-gold-partner
ncage
taa
ukca
windows-7-32-bit-64-bit-editions
windows-8-32-bit-64-bit-editions
windows-vista-32-bit-64-bit-editions
windows-xp-32-bit-64-bit-editions

Ethernet to RTD device: 4 input channels. Powerful ARM 120MHz, 32 Bit CPU

The device can be controlled over simple ASCII TCP Protocol or ASCII over virtual COM port. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more.

Can be configured and secured from a web browser, and installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.

Offers robust and intelligent ‘control side’ devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as ‘process side’.

The ED product range is designed for harsh environments. The digital output port line are implemented as protected output circuits, providing current overload and short circuit protection, voltage surge, overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices.
