PX-275

8 Port RS232 PCI Express Serial Card 25 Pin Connectors

8 Port RS-232 Serial Card
PCI Express (PCIe) Card
Includes 8 port cable DB25 connection
Data rate from 110 to 921,600 baud
Drivers for all popular operating systems including Windows 10,8,7, XP and 2000
Lifetime Warranty and Support

PDF Datasheet Download

$659.92

Add to Cart

Buy from Reseller

Volume Purchase?Request a Quote

windows-server-2003-32-bit-64-bit-editions

windows-server-2008-32-bit-64-bit-editions

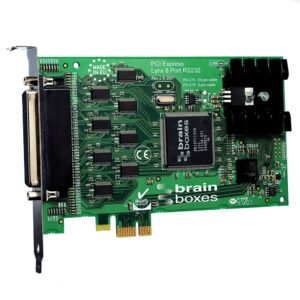

PCI Express Card providing eight RS232 serial ports connected using 25 pin cables. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7, Windows 8 and Windows 10.

Serial Port
Serial Port	Ports	8
	Protocol	RS232
	Connector	DB25 Connector - 25 Pin Male
	UART	Brainboxes 16C958
	UART Compatibility	16750/16550/16450 backwards compatible as well as an enhanced 950 mode
	Tx FIFO Size	32
	Rx FIFO Size	32
	Operating Distance	EIA - RS232 Standard

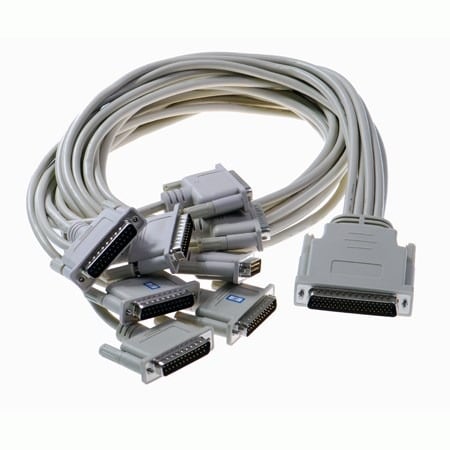

	Cable	8 port cable (78 way D to 8x25 Pin Male)
Serial Port Settings
Serial Port Settings	Max Baud Rate	921,600
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1, 1.5 or 2
	Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
	Tx/Rx Modes	Point to Point
General
General	PCB Layers	4
	Form Factor	Standard Height
	Includes Printer Port	No
	Galvanic Isolation	No
	Power Consumption	490mA @ 3.3V, 210mA @ 12V
	Product Weight	awaiting
	Product Dimensions	awaiting
	Packaged Weight	1.198 kg
	Packaged Dimensions	300(l) x 135(w) x 80(h) mm
	GTIN (barcode)	837324000245
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000
Interface
Interface	PCI Express x1, x4, x8 & x16 lane slots	PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.

Product Attributes

Weight	1.198 kg
Dimensions	300 × 135 × 80 mm
Ports	8 Ports
Form Factor	Standard Height
Protocol	RS232

1828
Ports: 8 Ports
Form Factor: Standard Height
Protocol: RS232
