PX-310

Name: PX-310 2 Port RS422/485 PCI Express Serial Card With Opto Isolation - Brainboxes
SKU: PX-310
Price: 356.40 USD
Availability: InStock
Rating: 5.00 (2 reviews)

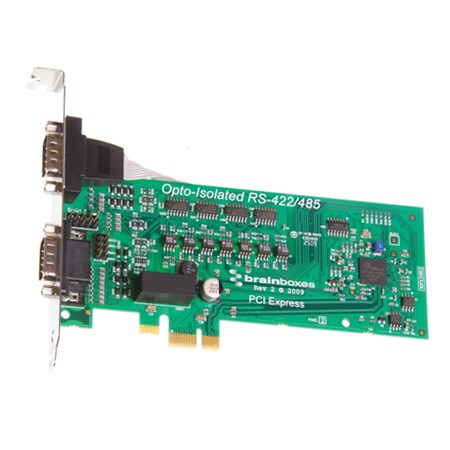

2 Port RS422/485 PCI Express Serial Card With Opto Isolation

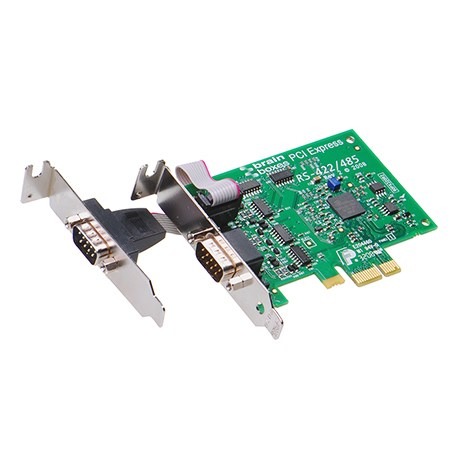

Alternative option: ES-313
PCIe 2xRS422/485 1MBaud Opto Isolated

PDF Datasheet Download

$356.40

Add to Cart

Buy from Reseller

Volume Purchase?Request a Quote

windows-server-2003-32-bit-64-bit-editions

windows-server-2008-32-bit-64-bit-editions

PCI Express Card providing two opto isolated RS422/485 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmitand 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Optical isolation provides greater protection from electrical current surges to both the card itself and the PC. It improves noise immunity by isolating the PC from the card’s transmit ground. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7, 8 and Windows 10.

NOT RECOMMENDED FOR NEW DESIGNS

EOL notification

Serial Port
Serial Port	Ports	2
	Protocol	RS422/485

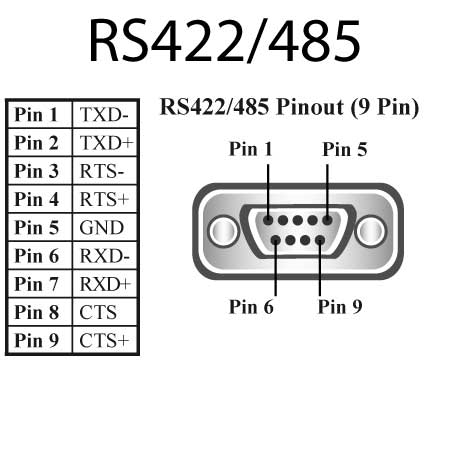

	Connector	DB9 Connector - 9 Pin Male
	UART	Oxford 950
	UART Compatibility	16750/16550/16450 backwards compatibile
	Tx FIFO Size	128
	Rx FIFO Size	128
	Operating Distance	RS422/485 Standard (4000 ft : 1200 metres)
	Cable	No Cable; Integrated Connector
Serial Port Settings
Serial Port Settings	Max Baud Rate	921,600
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1, 1.5 or 2
	Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
	Tx/Rx Modes	Full Duplex, Half Duplex Autogating
General
General	PCB Layers	4
	Form Factor	Standard Height
	Includes Printer Port	No
	Galvanic Isolation	Yes
	Power Consumption	320mA @ 3.3V, 70mA @ 12V
	Product Weight	0.083 kg
	Product Dimensions	162(l) x 120(w) x 18(h) mm
	Packaged Weight	0.216 kg
	Packaged Dimensions	200(l) x 135(w) x 80(h) mm
	GTIN (barcode)	837324009958
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000
Interface
Interface	PCI Express x1, x4, x8 & x16 lane slots	PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.

Product Attributes

Weight	0.216 kg
Dimensions	200 × 135 × 80 mm
Ports	2 Ports
Form Factor	Standard Height
Protocol	RS422/485

1832
Ports: 2 Ports
Form Factor: Standard Height
Protocol: RS422/485
