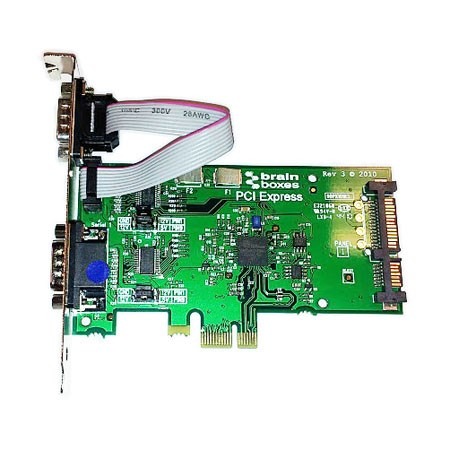

PX-805

PCI Express 2 Port RS232 Powered (through SATA power connector) 1 Amp POS Card

PCIe 2xRS232 POS 1A SATA
Two powered RS232 serial ports
up to 921,600 baud rates
Popular Operating Systems supported

PDF Datasheet Download

$192.97

Add to Cart

Buy from Reseller

Volume Purchase?Request a Quote

windows-server-2003-32-bit-64-bit-editions

windows-server-2008-32-bit-64-bit-editions

PCI Express Card providing two powered RS232 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Up to 1 Amp selectable power provided through pins 1 and 9 to attached peripherals. The extra power necessary is supplied to the PCI express card directly from the PC power supply unit through a Serial ATA (SATA) power connector: a neat, clean and green solution. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7, 8 and Windows 10.

NOT RECOMMENDED FOR NEW DESIGNS

EOL notification

Serial Port
Serial Port	Ports	2
	Protocol	RS232
	Connector	DB9 Connector - 9 Pin Male
	UART	Oxford 950
	UART Compatibility	16750/16550/16450 backwards compatibile
	Tx FIFO Size	128
	Rx FIFO Size	128
	Operating Distance	EIA - RS232 Standard
	Cable	No Cable; Integrated Connector
Serial Port Settings
Serial Port Settings	Max Baud Rate	921,600
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1, 1.5 or 2
	Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
	Tx/Rx Modes	Point to Point
General
General	PCB Layers	4
	Form Factor	Standard Height
	Includes Printer Port	No
	Galvanic Isolation	No
	Power Consumption	400mA @ 3.3V
	Product Weight	0.064 kg
	Product Dimensions	125(l) x 120(w) x 20(h) mm
	Packaged Weight	0.171 kg
	Packaged Dimensions	160(l) x 135(w) x 49(h) mm
	GTIN (barcode)	837324002744
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000
Interface
Interface	PCI Express x1, x4, x8 & x16 lane slots	PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.

Product Attributes

Weight	0.171 kg
Dimensions	160 × 135 × 49 mm
Ports	2 Ports
Form Factor	Standard Height
Protocol	RS232

2129
Ports: 2 Ports
Form Factor: Standard Height
Protocol: RS232
