UC-235

Name: UC-235 1 Port RS232 Low Profile PCI Serial Card - Brainboxes
SKU: UC-235
Price: 89.10 USD
Availability: InStock
Rating: 5.00 (1 reviews)

1 Port RS232 Low Profile PCI Serial Card

1 Port RS-232 Serial Card
Low Profile PCI Card
128 Byte Tx and Rx FIFOs
Data rate up to 115,200 Baud
Drivers for all popular operating systems
Lifetime Warranty and Support

PDF Datasheet Download

$89.10

Add to Cart

Buy from Reseller

Volume Purchase?Request a Quote

Low Profile Universal PCI providing one RS232 serial port. Data transfer rates up to 115,200 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8.

Serial Port
Serial Port	Ports	1
	Protocol	RS232
	Connector	DB9 Connector - 9 Pin Male
	UART	Brainboxes 16C958
	UART Compatibility	16750/16550/16450 backwards compatible as well as an enhanced 950 mode
	Tx FIFO Size	128
	Rx FIFO Size	128
	Operating Distance	EIA - RS232 Standard
	Cable	No Cable; Integrated Connector
Serial Port Settings
Serial Port Settings	Max Baud Rate	115,200
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1, 1.5 or 2
	Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
	Tx/Rx Modes	Point to Point
General
General	PCB Layers	4
	Form Factor	Low Profile
	Includes Printer Port	No
	Galvanic Isolation	No
	Power Consumption	190mA @ 5V, 12mA @ 12V
	Product Weight	0.06 kg
	Product Dimensions	132(l) x 80(w) x 18(h) mm
	Packaged Weight	0.356 kg
	Packaged Dimensions	160(l) x 135(w) x 49(h) mm
	GTIN (barcode)	837324000320
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Windows Server 2012 Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000 DOS
Interface
Interface	PCI 3.0	Peripheral Component Interface

FAQs

4.9

Based on 24 reviews

5 star	92	92%
4 star	8	8%
3 star		0%
2 star		0%
1 star		0%

1-5 of 24 reviews

Slimane Azmi
Verified owner

February 13, 2024

Rated 5 out of 5

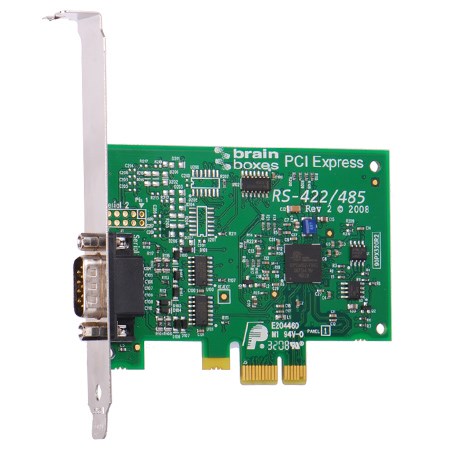

PX-324
Slimane Azmi
Verified owner

February 13, 2024

Rated 5 out of 5
PX-257
Great service and fast delivery. Thank you
Jack Mizrakli
Verified owner

February 1, 2023

Rated 5 out of 5
UC-275
Tomas Krajcovic
Verified owner

November 16, 2022

Rated 5 out of 5
PX-260
Fast response and prompt shipping. Top service from Brainboxes, thank you.
G.P. TECNO SRL
Verified owner

October 12, 2022

Rated 4 out of 5

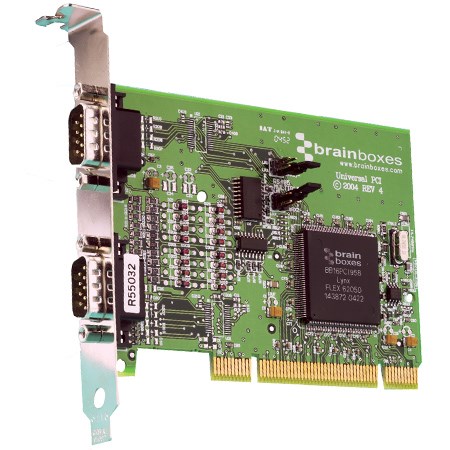

UC-313
