UC-279

8 Port RS232 PCI Serial Port Card DB9

8 Port RS-232 Serial Card
PCI 3.0
Includes 8 port cable DB9 connection
Data rate up to 115,200 Baud
Drivers for all popular operating systems
Lifetime Warranty and Support

PDF Datasheet Download

$593.93

Add to Cart

Buy from Reseller

Volume Purchase?Request a Quote

windows-server-2003-32-bit-64-bit-editions

windows-server-2008-32-bit-64-bit-editions

Universal PCI providing eight RS232 serial ports connected via 8×9 Pin Connector. Data transfer rates up to 115,200 baud rates and the 32 byte deep transmit and 32 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8.

Serial Port
Serial Port	Ports	8
	Protocol	RS232
	Connector	DB9 Connector - 9 Pin Male
	UART	Brainboxes 16C958
	UART Compatibility	16750/16550/16450 backwards compatible as well as an enhanced 950 mode
	Tx FIFO Size	32
	Rx FIFO Size	32
	Operating Distance	EIA - RS232 Standard

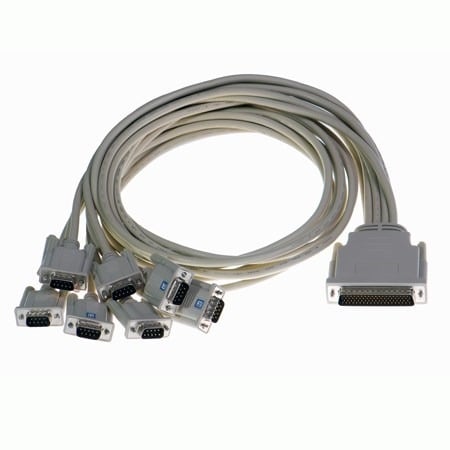

	Cable	78 way D to: 8 x DB9
Serial Port Settings
Serial Port Settings	Max Baud Rate	115,200
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1, 1.5 or 2
	Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
	Tx/Rx Modes	Point to Point
General
General	PCB Layers	4
	Form Factor	Standard Height
	Includes Printer Port	No
	Galvanic Isolation	No
	Power Consumption	300mA @ 5V, 50mA @ 12V
	Product Weight	0.102 kg
	Product Dimensions	155(l) x 120(w) x 18(h) mm
	Packaged Weight	1.056 kg
	Packaged Dimensions	300(l) x 135(w) x 80(h) mm
	GTIN (barcode)	837324000412
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Windows Server 2012 Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000 DOS
Interface
Interface	PCI 3.0	Peripheral Component Interface

Product Attributes

Weight	1.056 kg
Dimensions	300 × 135 × 80 mm
Ports	8 Ports
Form Factor	Standard Height
Protocol	RS232

1858
Ports: 8 Ports
Form Factor: Standard Height
Protocol: RS232
